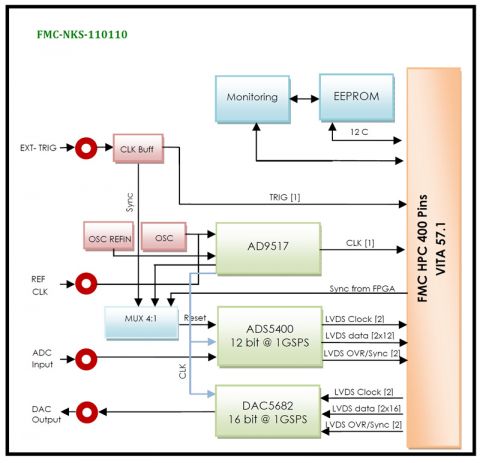

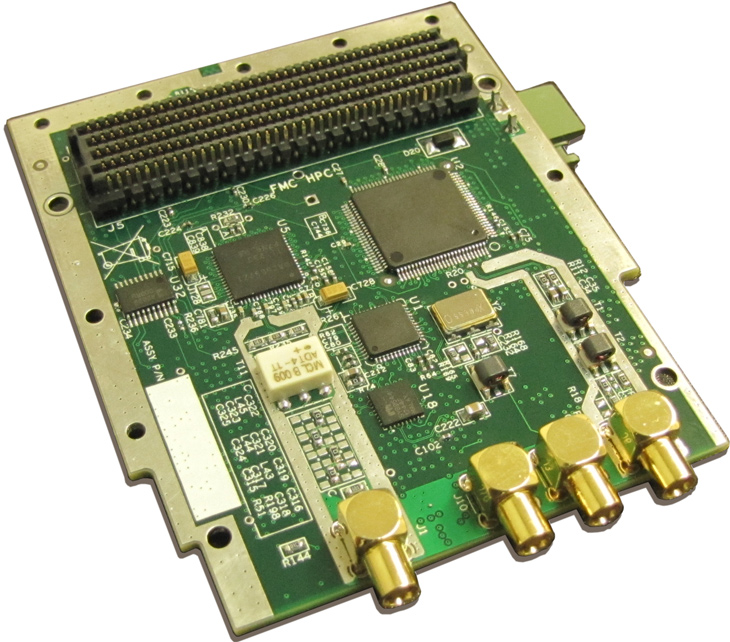

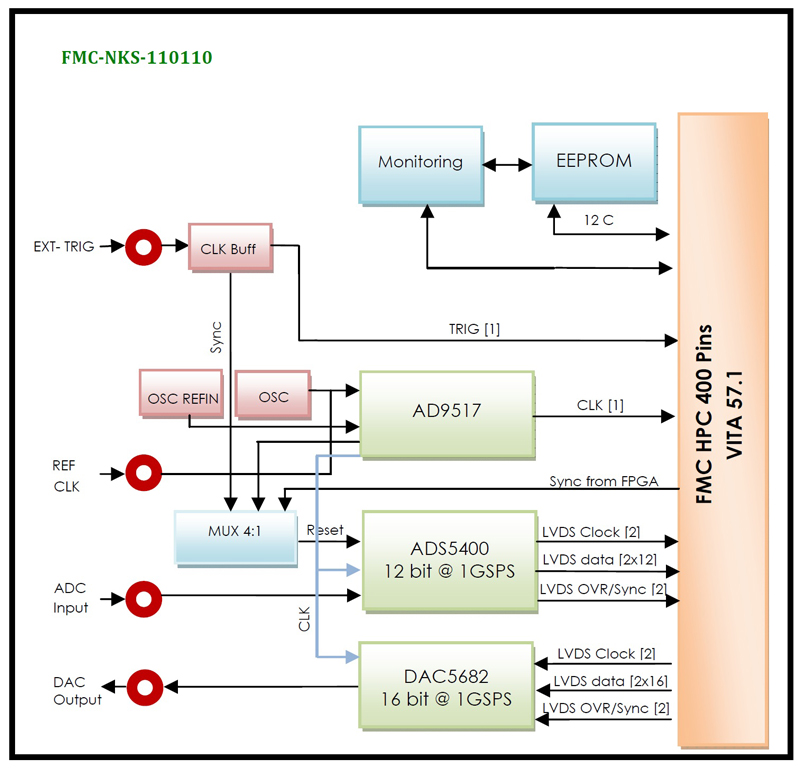

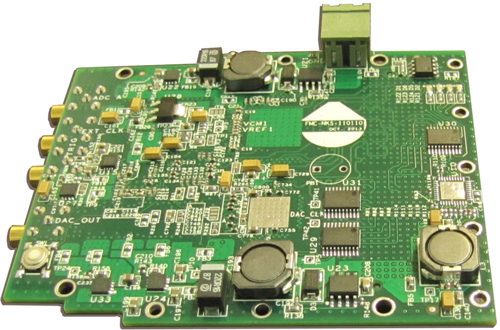

The FMC-NKS-110110 is a single-channel 12-bit ADC at 1GSPS synchronous and maximum sampling rate and single-channel 16-bit DAC at 1GSPS synchronous and maximum sampling rate. This module was designed based on single-channel ADS5400 ADC of TI company with DDR LVDS outputs and dual-channel DAC5682 (or single-channel DAC5681) DAC of TI company with DDR LVDS inputs. Because ofcontaining a FMC-HPC connector, FMC-NKS-110110 is mechanically and electrically compliant to VITA 57.1 standard. Controlling of clock source, sampling frequency and calibration by a SPI BUS are its other features. The clock sampling can be provided from an external or internal source and then send to distribution clock unit. Additionally a trigger input for customized sampling control is available. This module can use on every carrier card which follows the VITA 57.1 standard; therefore it can have the maximum data throughput and minimum latency.

ADC's:
• 1 Channels, 12-bit Resolution, 1 GSPS
• 2.1 GHz Input Bandwidth
• Single Ended AC-Coupled Analog Input
• SFDR = 68 dBc @ 800MHz and 1GSPS
• SNR = 57.2 dBFS @ 800MHz and 1GSPS
• ENOB = 9 bits @ 800 MHz and 1 GSPS
• 1.5V to 2V Selectable Full-Scale Range
• Serial Port Control
• LVDS-Compatible Outputs, 1 or 2 Bus Options

DAC's:
• 1 Channels, 16-Bit, 1GSPS Update Rate
• Analog Output with 500MHz Bandwidth
• Analog Output Filter Options
• Phase Noise > 100dBc @ 1kHz and 1GSPS
• Interleaved I/Q data for Dual-DAC Mode
• 2x-32x Clock Multiplying PLL/VCO
• 2x or 4x Interpolation Filters
• Differential Scalable Output: 2 to 20 mA

Other's:
• VITA 57.1 Compliant
• FMC Interface Connector for Digital Input Output, Power LEDs and Single-ended MCX Connector for AIN, AOUT& EXTCLK
• Flexible Clock Tree Enables (Internal Clock, External Clock, Internal Clock with External Reference)
• Operating Temperature: -40°C to +85°C (Industrial)
• Physical Dimensions (L: 83.8 mm, W: 69 mm)
